UNITRON® Z10 Zoom Stereo Microscope Series

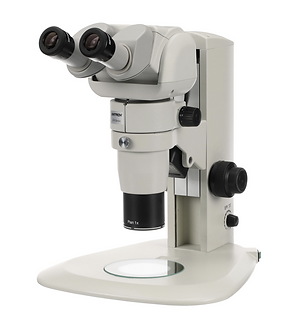

UNITRON Z10 zoom stereo microscope with adjustable magnification

GO TO:

UNITRON's Z10 zoom stereo microscope is a modular system delivering outstanding ergonomic and optical performance. With viewing head options and the ability to easily add a camera for image capture or output to a video monitor, the Z10 is one of the best choices available for medical device manufacturers, industrial inspection and assembly, quality control or OEM and research applications. The Z10 provides lots of options and has a high depth of focus and superior resolution. Many configurations available with 10:1 (Z10), 8:1 (Z8), or 6.3:1 (Z6) zoom ratio. Shown here: Z10 with coaxial coarse/fine focus LED stand and optional camera.

Viewing Bodies

20° Inclined binocular head or ergonomic 0-35° tilting binocular head. All systems can easily add an optional photo port/beam splitter for attaching a camera

Anti-Mold

Anti-mold and airtight design

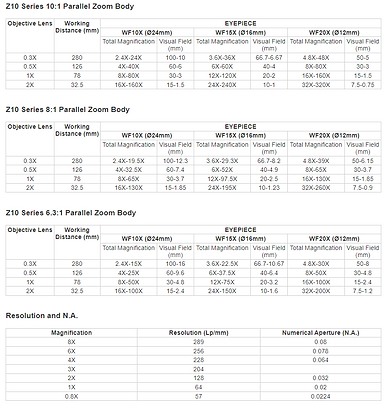

Magnification

Z10 systems: 0.8x to 8x (zoom ratio: 10:1); Z8 systems: 0.8x to 6.4x (zoom ratio: 8:1); Z6 systems: 0.8x to 5.0x (zoom ratio: 6.3:1)

Working Distance

78mm with 1x plan achromat objective

Interpupillary Distance Adjustment

51-75mm

Eyepieces

WF 10x/24mm FOV; extended eyetubes on 20° angle binocular head maximum viewing comfort

Plain Focusing Stand

76mm focus mount diameter, 100mm focusing stroke, 240mm(l) x 290mm(d) x 318mm(h), 125mm black & white stage plate

LED Reflected/Transmitted Illuminated Stand with Coarse or Coarse/Fine Focusing

76mm focus mount diameter, 100mm focusing stroke, 240mm(l) x 292mm(d) x 318mm(h), 100mm clear glass stage plate and black & white stage plate. Variable 12v/4w transmitted and 12v/2w reflected LED illumination; average LED life expectancy-7,000 hours. Color temperature: 6200° - 70000° Kelvin

LED Reflected/Transmitted Illuminated Stand

76mm focus mount diameter, 100mm focusing stroke, 240mm(l) x 292mm(d) x 318mm(h), 100mm clear glass stage plate and black & white stage plate. Variable transmitted and reflected LED illumination; average LED life expectancy-7,000 hours. Color temperature: 6200° - 70000° Kelvin.

Boom Stand

Base dimensions 254mm x 254mm (10" x 10"), vertical post-365mm, horizontal post-518mm. Physical weight 37lbs

Ball Bearing Boom Stand

Base dimensions 254mm x 254mm (10" x 10"), vertical post-394mm, horizontal post-585mm. Physical weight 42lbs

Bonder Arm (E-Arm)

For use with Boom Stand, Ball Bearing Boom Stand, and Articulating Arm (Flex Arm) Stand. Ø76mm focus mount, 5/8" mounting pin

Accessories

Dust cover and instruction manual.

Warranty

5 year limited warranty for parts, labor, and electronic components.
